Anemómetro y dirección del viento[Pro-D]

£239.00

This product will be despatched within 10-15 working days

---- QUESTIONS AND ANSWERS ----

Categoría: anemometer, datalogger, LeWL wind logge, Wind, Wind measurement

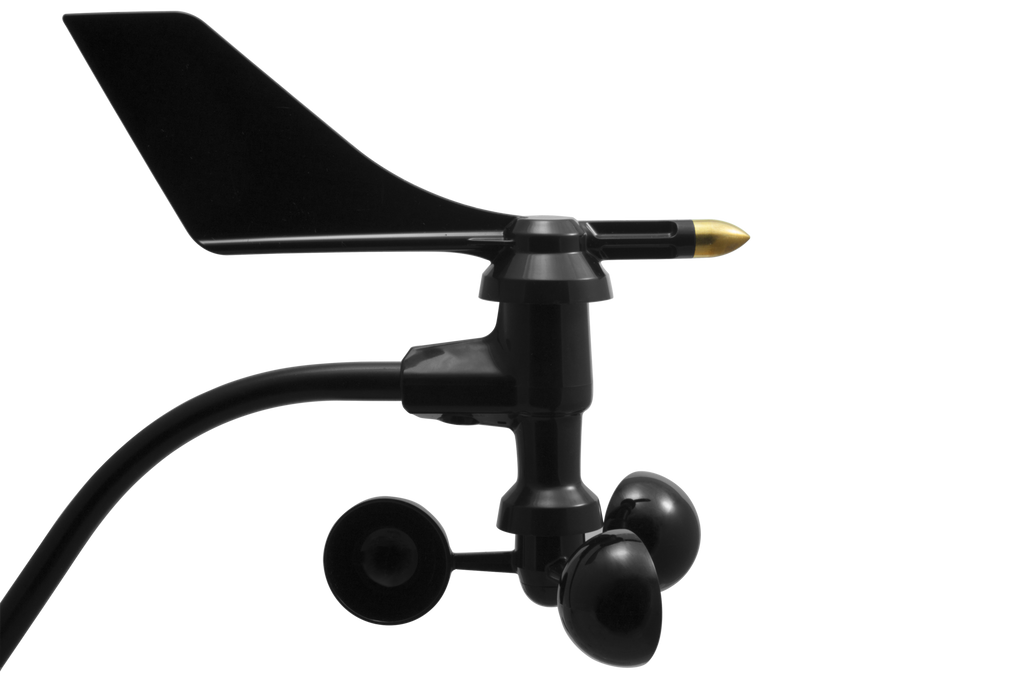

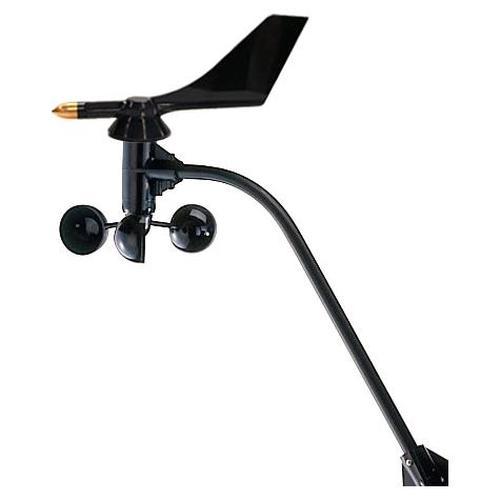

Este Anemómetro Pro-D mide la velocidad del viento y su dirección cuando se conecta a un registrador de datos de velocidad del viento como el nuevo WindLogger, WindTracker o nuestros Sistemas GSM.

El Anemómetro Pro-D (Davis 6410) viene con un sensor de velocidad del viento, veleta y fijaciones para tubería de 2" (usted nada más debe proporcionar el mástil de viento), 13 metros de cable y accesorios para la instalación.

Especificaciones Generales:
Tipo de Sensor: Velocidad de Viento - Tazas de Viento e Interruptor Magnético de Dirección de Viento - Veleta y Potenciómetro
Longitud del cable adjunto: 12m (40 pies)
Tipo de Cable: 4-conductor, 26 AWG
Material: Veleta y Cabeza de Control: Aluminio Resistente a los Rayos UV
Tazas de Viento: Policarbonato
Brazo del Anemómetro: Aluminio Negro Anonizado
Dimensiones: 381mm Largo x 38mm Profundidad x 457mm Altura
Salida de Dirección del Viento:

Para más información acerca del Anemómetro Pro-D, descargue aquí este archivo pdf

Department of Ecology and Genetics/Simone Moras

In our project, we need to predict methane emission from lakes since it is a potent greenhouse gas. But to do that, we need to understand lake hydrodynamics first (e.g. water temperature, stratification patterns etc.). Wind has a strong effect on lake hydrodynamics and, therefore, it would be fundamental to get high frequency data on wind speed on the lake we study hence this type of kit is providing us with the valuable data. The lake I study is located in an agricultural area so no major obstacles (i.e. trees) will affect the wind speed.

Ski resort AXAMER LIZUM

Windcrane Max system is working as we hoped. We got all the information including the wind direction we needed for our snowmaking system. We had a very cold condition with wind and snow, but it worked very well. Also, the PV panel works very well.

Customer Questions

Ask Question

Q: Dear,I have bought the kit Pro-D+Wind Logger.I want to use our own DAQ system for live reading, for that I would need more information regarding the output signal of both sensors (vane anda anemometer). For example, output range V, sensitivity, calibration values.Thank you in advance.João OliveiraBosch Car Multimedia Portugal SA

A: You can find details of the anemometer here: https://www.windlogger.co.uk/collections/sensors/products/pro-d-anemometer and also you can connect to the WINDLogger via serial port, which will provide the data ready for consumption in ASCII format
